Paper insulated copper winding wire with 0.40mm insulation thickness Chinese manufacturer

View more products about paper covered winding wires+

Copper Conductor Material

The copper conductor used in paper insulated winding wire is manufactured from high-purity oxygen-free copper, ensuring excellent electrical conductivity and resistance to oxidation. The copper typically conforms to international standards for electrical conductors, with a minimum conductivity of 100% IACS (International Annealed Copper Standard). This high purity level is essential for maintaining the required electrical performance and minimising resistive losses in transformer windings.

Insulation Configurations for 0.40mm Thickness

Number of Insulation Layers

The 0.40mm insulation thickness can be achieved through various layer configurations, with the specific arrangement determined by the paper type and application requirements. Industry practice typically specifies a minimum of two layers of paper tape for oil-immersed transformer applications, providing the necessary basic insulation for low to medium voltage windings .

For the 0.40mm thickness specification, a two-layer configuration is common, with each paper layer contributing approximately 0.20mm to the total insulation thickness. This configuration provides adequate dielectric strength while maintaining the dimensional benefits of a reduced insulation profile. Higher voltage applications may require additional insulation layers to withstand increased electrical stress, though for the 0.40mm specification, two layers typically suffice for many medium voltage applications.

Insulation Thickness Specifications and Tolerances

The 0.40mm insulation thickness represents a specification that provides balanced dielectric performance with reduced overall conductor dimensions. Standard insulation thicknesses in the industry include 0.30mm, 0.45mm, and 0.80mm for round conductors, with 0.45mm, 0.60mm, and 0.95mm commonly specified for flat conductors . The 0.40mm thickness occupies a position between these standard values, offering a customised solution for specific design requirements.

For the 0.45mm nominal insulation thickness, the industry typically provides a minimum insulation thickness of 0.40mm and a maximum of 0.57mm . This indicates that a specification of 0.40mm insulation thickness would require careful consideration of manufacturing tolerances to ensure consistent dielectric performance. The tolerance for thinner insulation layers is typically ±0.05mm , which must be factored into transformer designs to ensure adequate dielectric clearances.

The minimum insulation thickness is particularly critical for maintaining dielectric integrity. When specifying 0.40mm insulation, transformer designers must ensure that the actual insulation thickness, including manufacturing tolerances, provides sufficient dielectric strength for the intended voltage rating.

The Manufacturing Process

Conductor Preparation

The manufacturing journey for paper insulated copper winding wire begins with high-quality oxygen-free copper rods. These rods undergo a series of forming operations to achieve the required cross-section, whether round or rectangular . The process involves drawing through precisely dimensioned dies to achieve the desired conductor dimensions, followed by annealing to achieve the required mechanical properties and electrical conductivity. Annealing is essential to relieve internal stresses from the drawing process and to achieve the optimal grain structure for electrical performance.

Throughout this forming stage, rigorous in-process quality control ensures dimensional accuracy within tight tolerances, representing a critical quality parameter for subsequent winding operations. The copper must also be free from surface defects that could affect the adhesion of the paper insulation or create stress concentrations during winding.

Surface Preparation and Cleaning

Following the mechanical forming operations, the copper conductor undergoes thorough cleaning to remove surface contaminants, oxides, and processing residues. Ultrasonic cleaning systems using pure water are commonly employed to ensure no impurities remain on the conductor surface . This cleaning step is essential for several reasons: it removes contaminants that could compromise the adhesion of the paper insulation, eliminates impurities that might introduce contaminants into the transformer oil during service, and ensures consistent electrical contact and prevents localised heating points that could accelerate insulation degradation.

The cleanliness of the conductor surface directly affects the wetting and impregnation characteristics of the paper insulation, influencing the long-term reliability of the winding system.

Paper Winding Process

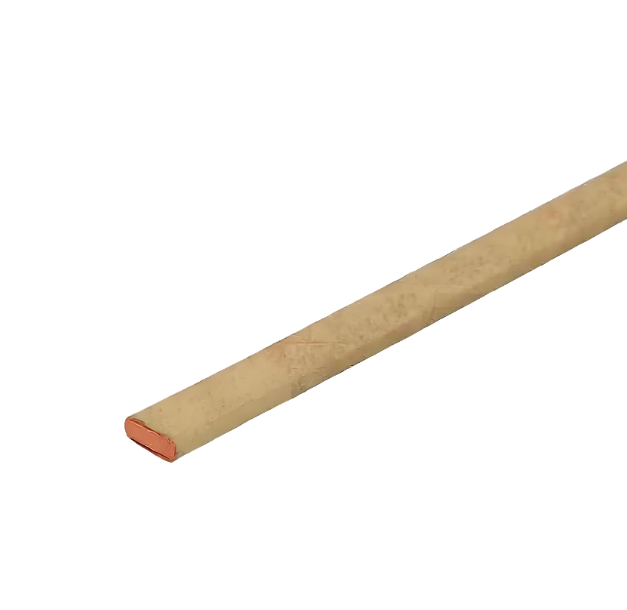

The application of kraft paper insulation represents the defining operation in manufacturing paper insulated copper winding wire. The paper covering is applied in a spiral wrapping process, where the paper tape is wound around the copper conductor with precise tension control and overlap . For the 0.40mm insulation thickness specification, the winding process must achieve consistent paper coverage while maintaining the required overall thickness.

The winding process demands careful control of several parameters, including winding tension, paper overlap, and tape feed rate. These factors collectively determine the uniformity and density of the paper covering, which directly affects the dielectric properties and the ability of the wire to maintain consistent insulation thickness throughout the length of the winding.

The spiral wrapping technique requires sophisticated machinery capable of maintaining consistent paper placement at production speeds while accommodating various conductor dimensions. The winding method can be customised according to customers’ requirements, with different paper types and layer configurations available to meet specific performance needs .

Insulation Materials

Kraft paper remains the most widely used insulation material for this application due to its excellent dielectric properties, compatibility with transformer oil, and cost-effectiveness . The paper used must conform to international specifications for electrical insulating papers, defining the required electrical, mechanical, and physical properties.

Beyond standard kraft paper, manufacturers may offer alternative paper types to meet specific performance requirements. These options include cable paper, telephone paper, high-voltage cable paper, and turn-to-turn insulation paper . For the 0.40mm insulation thickness, the selection of paper type must consider the operating temperature class, voltage rating, and specific customer specifications.

NOMEX paper represents a premium alternative offering enhanced thermal stability and dielectric strength, particularly suitable for higher temperature classes . The selection of paper type influences both the dielectric performance and the thermal capabilities of the finished winding wire.
