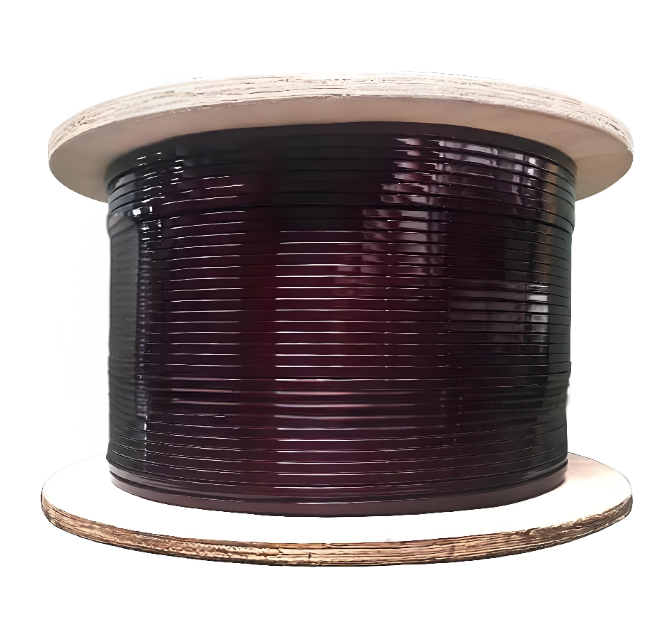

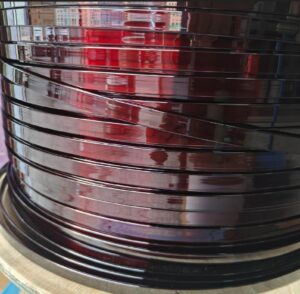

Class 180 Enamelled Flat Aluminum Wire, 0.8-5.6mm Thick x 2.0-16mm Wide for Transformers

View more products about flat enameled aluminium wire+

Advantages of Enamelled Flat Aluminum Wire vs. Copper Wire

1. Cost Advantage

Aluminum is significantly less expensive than copper. On a per-kilogram basis, aluminum costs approximately one-third of copper. For transformers and motors with identical kVA or horsepower ratings, replacing copper with aluminum windings reduces material costs by 17–22% overall. This cost differential becomes increasingly critical for large-volume production and large-scale power equipment.

2. Weight Reduction

Aluminum has a density of 2.70 g/cm³, compared to copper’s 8.89 g/cm³—making aluminum roughly 70% lighter than copper for the same volume. In transformer applications, aluminum windings reduce total transformer weight by 28–34%, which translates to lower shipping costs, easier handling, and reduced structural support requirements in installations.

3. Comparable Electrical Performance with Optimized Design

Although aluminum has higher resistivity (0.0280 Ω·mm²/m vs. copper’s 0.017241 Ω·mm²/m at 20°C), this disadvantage is effectively compensated by the rectangular cross-section of flat wire:

• Higher Space Factor: The rectangular shape allows more conductor material to fit within the same winding window, reducing the required winding length and partially offsetting the resistance penalty.

• Cross-Section Adjustment: By increasing the cross-sectional area of the aluminum conductor (typically by 1.6× compared to an equivalent copper wire), the DC resistance can be matched to that of copper while still maintaining cost and weight benefits.

4. Superior Thermal Dissipation

Flat aluminum wire has a larger surface area per unit volume than round copper wire of equivalent cross-section. This enhanced surface area improves heat transfer from the winding to the surrounding cooling medium (air or oil), resulting in:

• Lower hotspot temperatures within the winding

• Extended insulation life (every 10°C reduction in operating temperature doubles the enamel’s service life)

• Potentially reduced cooling system requirements in transformer design

5. Improved Flexibility and Bend Performance

Aluminum is inherently more ductile than copper in its annealed state. Class 180 enameled flat aluminum wire can be bent over mandrels of 3–4 times its thickness without cracking the enamel coating. This flexibility facilitates:

• Easier coil winding and insertion processes

• Reduced stress on the insulation during manufacturing

• Lower reject rates in transformer production

6. Excellent Thermal Class Performance

Class 180 (H-grade) enameled flat aluminum wire, coated with polyester-imide or polyamide-imide insulations, achieves the same thermal rating (180°C continuous operating temperature) as its copper counterpart. The thermal aging characteristics of the enamel coating are independent of the conductor material, meaning aluminum windings deliver identical thermal endurance to copper windings when using the same insulation system.

7. Availability and Supply Stability

Aluminum is the third most abundant element in the Earth’s crust, ensuring stable long-term supply and less price volatility compared to copper, which faces increasing supply constraints and geopolitical risks. This supply predictability allows manufacturers to better forecast material costs and production budgets.

8. Environmental and Sustainability Benefits

The production of aluminum wire consumes approximately 95% less energy than primary aluminum refining when using recycled material. Additionally, the lower weight of aluminum windings reduces the carbon footprint associated with transportation and installation, supporting OEMs’ sustainability targets and ESG (Environmental, Social, Governance) reporting requirements.

China’s Position: Chinese suppliers fulfill approximately 58% of global enameled aluminum winding wire demand. In 2024, China exported about 180,000 metric tons of enameled aluminum wire, accounting for over 60% of global trade volume.

Flat Wire Specifics: While precise figures for the exact Class 180 flat specification are unavailable, the broader enamelled flat wire market was valued at approximately USD 474 million in 2025, with a projected compound annual growth rate of 3.9% through 2032. Flat wire represents the fastest-growing segment within the enameled wire market, driven primarily by:

• New Energy Vehicle Drive Motors: Each EV drive motor uses 5-15 kg of enameled aluminum flat wire. In 2024, EV drive motors alone consumed 170,000 metric tons of aluminum enameled flat wire—a figure that was near zero just two years prior.

• Transformer Applications: Every kVA of new transformer capacity requires 0.8-1.2 kg of enameled aluminum winding wire.

Extrapolated Estimate for Class 180 (H-Grade) Flat Wire: Given that Class 180 is a standard thermal class for transformer and motor applications, it likely represents a significant portion of flat wire consumption. A reasonable estimate for China’s consumption of 0.8-5.6mm x 2.0-16mm Class 180 flat wire through July 2026 would be in the range of 180,000–220,000 metric tons (annualized), based on China’s ~58% global supply share and the 2026 global aluminum enameled wire estimate of 920,000 tons.

9. Major International Markets

Asia-Pacific (55% Global Market Share):

• China dominates as the largest producer and exporter.

• Japan and South Korea are major buyers of high-precision aluminum enameled wire for automotive electronics.

• Southeast Asia represents a growing manufacturing hub for transformers and motors.

North America:

• The United States and Canada represent significant import markets, though 2025 tariff frameworks have introduced volatility affecting trade flows and supply chain strategies.

• U.S. demand is driven by grid modernization, renewable energy integration, and EV fast-charging infrastructure.

Europe:

• European demand centers on Germany, France, and the U.K., driven by industrial automation, renewable energy (wind turbine generators), and EV manufacturing.

• Stringent environmental regulations (RoHS, REACH) govern solvent-based enamel coatings, favoring compliant suppliers.
