Thermal Classes and Insulation Systems

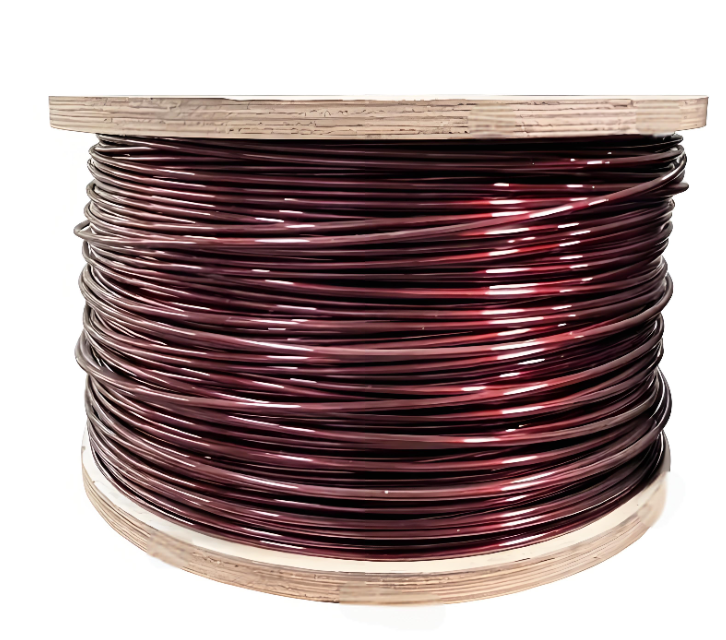

Large-diameter aluminum wire is available in multiple high-temperature ratings:
-
Class 200 (Modified Polyester / Polyester-imide): Continuous operating temperature of 200°C, with heat shock resistance up to 240°C. Suitable for sealed compressors and high-temperature transformers.
-
Class 220 (Polyesterimide / Polyamide-imide): Rated for 220°C continuous operation, with excellent resistance to refrigerants, solvents, and thermal shock. Often dual-coated for superior dielectric strength and mechanical endurance .
-
Extended ratings: Some products achieve heat shock resistance up to 240°C, providing additional safety margins in extreme environments .
Applications and Equipment Compatibility
Large-diameter enameled aluminum wire is specifically designed for equipment operating under high thermal and electrical stress:
High-Power Motors
-
Washing machine motors, fan motors, and air conditioner compressors operating at elevated temperatures
-
Anti-explosion motors requiring robust insulation integrity
-
Automotive starter motors and generators subjected to cyclic thermal loads
Power Transformers
-
Oil-immersed transformers where Class 200 insulation provides superior resistance to transformer oils
-
Dry-type transformers in industrial and commercial settings
-
Microwave oven transformers and air-conditioning motors requiring thermal stability
Specialized Equipment
-
Generators (Class C and higher ratings)
-
UPS power supplies and electronic transformers
-
Military and aerospace applications where reliability is critical
Export and Global Reach

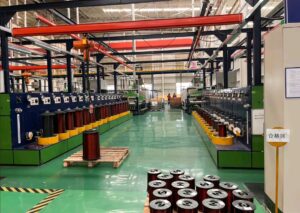

As a Zhengzhou-based manufacturer, Zhengzhou Tasuu Windingwire Industry Co., Ltd. serves a global client base across multiple continents. Products are exported to nearly 50 countries and regions, with mature export experience and internationally recognized quality certifications including ISO9001, SGS, and UL approvals .
Export Methods and Logistics
-

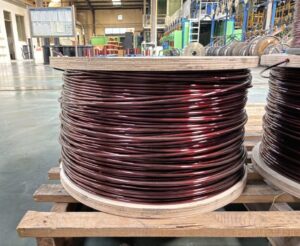

Sea freight is the primary shipping method, with products packed on standard plywood spools (30–150 kg per spool) and containerized for ocean transport
-
Typical shipping ports include Shanghai, Qingdao, and Ningbo
-
Standard Incoterms: FOB Shanghai, CIF, or EXW
-
Minimum order quantities typically range from 500 kg to 1,000 kg for large-diameter products
Key Export Markets
-
Asia: India, Southeast Asian countries (Vietnam, Thailand, Indonesia, Malaysia, Philippines), South Korea, Pakistan, and Middle Eastern nations
-
Europe: Germany, UK, France, Italy, Poland, Russia, and Turkey, where industrial automation and automotive sectors drive demand
-
Americas: USA, Canada, Brazil, and Mexico
-
Oceania & Africa: Australia, New Zealand, South Africa, and other developing industrial regions
