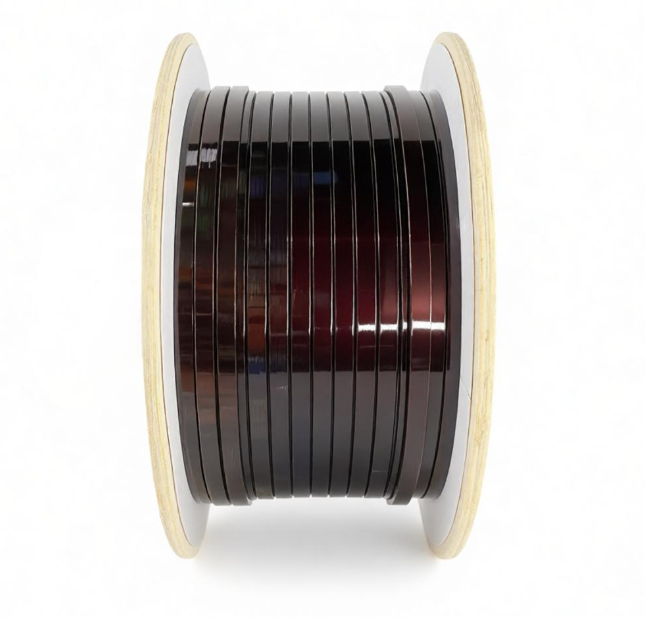

The foundation of our 2*8mm 180℃ flat enameled copper wire lies in the adoption of 99.99% high-purity oxygen-free copper as the base conductor material, which is processed through a series of proprietary precision manufacturing processes to ensure consistent performance across every production batch. Unlike ordinary flat copper wires that may contain impurities or uneven crystal structures, our raw copper material undergoes multi-pass continuous extrusion and inert gas protection annealing treatment, resulting in a uniform internal grain arrangement that minimizes resistivity to far below the industry average. This characteristic directly translates to significantly reduced copper loss during long-term equipment operation, effectively improving the overall energy efficiency of the winding system and helping end users cut down operational costs in high-load scenarios.
The strict dimensional control system is another standout feature of our 28mm specification. The a-side (thickness) of the flat conductor is precisely maintained at 2.00mm with a tolerance of no more than ±0.02mm, while the b-side (width) is accurately controlled at 8.00mm with a deviation less than ±0.03mm. This level of precision far exceeds the basic requirements of national standards, ensuring that the wire can achieve the maximum slot fill factor when embedded into the stator or transformer core. Compared with using multiple round enameled copper wires to achieve the same cross-sectional area, our 28mm flat wire can increase the slot utilization rate by more than 30%, which is particularly critical for high-power density design scenarios where every cubic millimeter of internal space in the equipment counts. The laser outer diameter measuring instrument with a precision of 0.001mm deployed on our production line performs 100% full inspection on every meter of the product, eliminating the risk of dimensional deviation that may cause difficulty in winding embedding or insulation damage during subsequent processing.
180℃ H-Class Thermal Performance: Built for Extreme Operating Conditions
As a typical 180℃ heat-resistant grade enameled flat copper wire, our product adopts a double-layer composite insulation structure that combines the advantages of polyester-imide base coat and polyamide-imide top coat, which is specially formulated to withstand long-term continuous operation at 180℃ without performance degradation. According to the standard requirements for 180-grade enameled wires, the minimum temperature index of our product is no less than 180, and the thermal shock temperature can reach above 200℃, which means it can maintain stable mechanical and insulation properties even when the equipment experiences instantaneous temperature spikes during frequent start-stop cycles or overload operations.
After 2000 hours of continuous thermal aging test at 190℃, our 2*8mm flat enameled copper wire still retains more than 85% of its original breakdown voltage performance, far exceeding the 50% retention rate required by the basic industry standard. The maximum allowable temperature rise of the winding made with this product can reach ≤125K, which fully meets the strict requirements of H-class electrical equipment. This outstanding thermal performance makes it completely different from ordinary 130℃ or 155℃ heat-resistant enameled wires that are prone to insulation brittleness, paint film cracking or turn-to-turn short circuit after long-term operation in high-temperature environments. For application scenarios such as electric vehicle drive motors, high-speed railway traction transformers, metallurgical heavy-duty rolling mill motors and high-temperature resistant dry-type transformers that need to work in harsh thermal environments for decades, our 180℃ grade flat wire can effectively extend the service life of the equipment by 2 to 3 times compared with products of lower heat grades.
Comprehensive Mechanical and Electrical Properties for Industrial Winding
Our 2*8mm 180℃ flat enameled copper wire is engineered with a perfect balance of mechanical properties that perfectly adapt to various industrial winding processes. The paint film adopts an optimized formula with moderate friction coefficient and ultra-high adhesion strength: after the wire is wound around a rod with the same width as the flat wire for 180 degrees, there is no paint film cracking or peeling phenomenon observed under 10 times magnification. The wear resistance performance of the top coat has reached the advanced level in the industry, with the reciprocating scraping test result exceeding 120 times, which effectively avoids the common problem of paint film scratching during automatic winding, slot embedding and shaping processes that may cause hidden insulation dangers.
In terms of electrical performance, the breakdown voltage of a single paint film of our 2*8mm flat wire is higher than 4000V, and the overall insulation system can withstand a test voltage of more than 12kV after being made into a coil. The product has extremely low partial discharge inception voltage (PDIV) characteristics, which is very suitable for the winding of frequency conversion motors that are subject to frequent pulse voltage impacts. Even under the action of high-frequency PWM pulse voltage, the insulation system will not experience rapid aging failure, which solves the long-standing pain point of short service life of frequency conversion motor windings in the industry. In addition, our product has excellent solvent resistance and chemical corrosion resistance, and will not be eroded and damaged by impregnating varnish, cooling oil or various industrial chemicals during long-term operation, ensuring the long-term reliability of the winding system.
Wide Application Scenarios and Customized Service Capabilities
The 2*8mm 180℃ flat enameled copper wire has found irreplaceable applications in numerous high-end industrial fields. In the new energy vehicle industry, it is the core winding material for drive motors of high-power electric buses and heavy-duty commercial vehicles, helping to achieve higher power density and longer continuous mileage. In the field of power transmission and transformation, it is widely used in high-voltage and high-capacity dry-type transformers and reactor products, which can operate stably in high-altitude, high-temperature and humid environments without the risk of oil leakage and explosion. In the engineering equipment manufacturing industry, it is the preferred winding material for large-scale excavator motors, shield tunneling machine driving motors and metallurgical rolling mill main motors that need to withstand heavy loads and frequent impact.
As a professional Chinese manufacturer with more than 20 years of experience in enameled wire production, we can provide highly flexible customized services to meet the special needs of different customers. We can adjust the color of the paint film to black, deep red, dark blue, green and other colors according to customer requirements for easy phase distinction during winding. We can also customize the insulation thickness to ordinary grade 1 or thickened grade 2 according to the different voltage levels of the equipment. For customers with special process requirements, we can provide special treatments such as self-lubricating paint film, high thermal conductivity insulation layer or non-sticky paint surface. All products are strictly tested in our central laboratory before leaving the factory, and each batch is accompanied by a complete quality test report, which can be fully traced to the production process parameters and raw material batches.
Stable Supply System and Global Quality Assurance
Relying on the complete industrial chain advantage of China’s copper deep processing industry, our 2*8mm 180℃ flat enameled copper wire has achieved large-scale stable production, with conventional specifications kept in stock all year round, and the delivery cycle for small-batch orders can be as fast as 3 to 7 working days. We have obtained UL certification, IEC certification and CE certification, and the product quality fully complies with the standards of various countries and regions around the world. Our professional technical team can provide customers with full-process technical support from the early stage of winding design, process optimization to after-sales problem solving, helping customers maximize the performance advantages of our products in their own equipment.
In the global market competition, our 2*8mm 180℃ flat enameled copper wire has won the trust of more and more customers with its excellent quality, reasonable price and perfect service system. It is not only a high-quality winding material that meets the current high-standard electrical equipment manufacturing requirements, but also a reliable choice for the long-term stable operation of equipment. As a leading Chinese manufacturer, we will continue to invest in technological innovation, further optimize product performance, and provide more high-quality and efficient magnet wire solutions for the global electrical industry.
