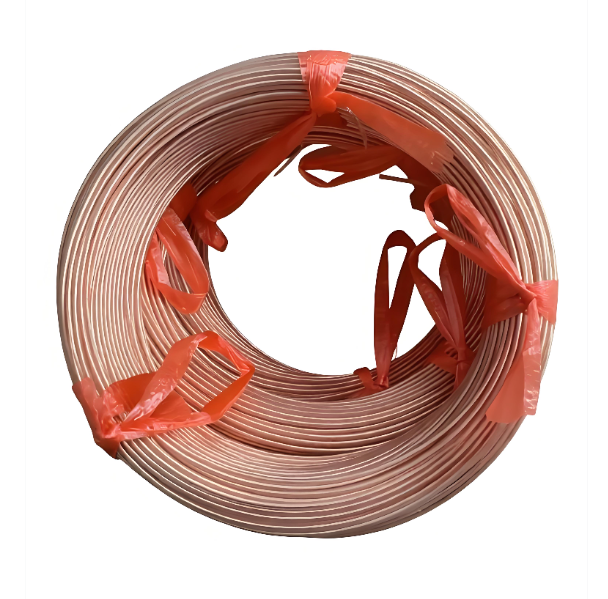

High Temperature Resistantance PE2+PA Submersible Pump Winding Wire

Dimension Specifications

• Conductor material: 99.97%+ high-purity oxygen-free copper wire
• Conductor diameter range: Φ0.20 mm to Φ5.00 mm
• Conductor structure options: Single-strand, 7-strand, 19-strand, 37-strand, 49-strand and 61-strand stranded configurations, which can be customized according to different motor power and stator slot design requirements

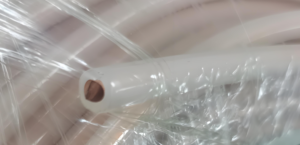

• Insulation & sheath total thickness: 0.25mm to 1.8mm, with precise extrusion tolerance control to maximize the motor stator slot fill rate and effectively improve the power density of submersible motors

Electrical & Voltage Withstand Performance

• Rated operating voltage: 450/750V, covering low-voltage 380V to medium-high voltage 10kV submersible motor application scenarios
• Power frequency water immersion withstand voltage: No breakdown after 1-minute test at 1760V; reinforced models can pass 3000V/min high-strength withstand test
• Inter-turn impulse withstand voltage: Fully meets the strict requirements of submersible motor frequent start-stop scenarios, effectively avoiding insulation damage caused by instantaneous voltage surges
• 20℃ volume resistivity: ≥1×10¹² Ω·cm, with extremely low medium loss, ensuring stable electrical performance during years of continuous underwater operation

High Temperature & Environmental Adaptability

• Maximum continuous allowable operating temperature: 150℃, specially adapted for high-temperature hot water submersible pumps and geothermal energy extraction equipment
• Applicable water temperature range: +5℃ to +105℃, special customized models can withstand instantaneous high temperature impact up to 280℃
• Water quality corrosion resistance: Adapt to groundwater with pH 6.5-8.5, chloride ion resistance up to 400mg/L, and can operate stably for a long time in mine drainage, agricultural irrigation and urban water supply scenarios

Industry Standard Compliance

All products of zhengzhou tasuu windingwire industry co.,ltd are designed, produced and inspected in strict accordance with industry standards, ensuring full compatibility and interchangeability with mainstream submersible pump systems at home and abroad:

• JB/T 4014-2013 “Winding Wires for Submersible Motors”: The core industry standard that specifies the dimensional tolerance, material performance and test methods for PE+PA series submersible motor winding wires
• JB/T 9615.1 “Test Method for Inter-turn Insulation of Random Wound Windings for AC Low-Voltage Motors”: Standardizes the inter-turn impulse voltage withstand test procedure of winding wires, which is a key link in our factory quality inspection
• JB/T 9616 “Test Limit for Inter-turn Insulation of Random Wound Windings for AC Low-Voltage Motors”: Defines the qualified threshold of inter-turn insulation performance, ensuring that every batch of products delivered meets the highest industry reliability requirements

Application Scenarios

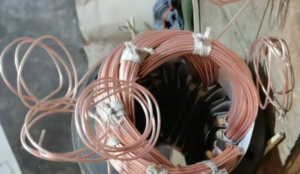

This series of winding wires is widely used in agricultural deep well submersible pumps, urban water supply and drainage units, geothermal hot water extraction systems, mine drainage equipment, fire-fighting submersible pumps and other fields. zhengzhou tasuu windingwire industry co.,ltd also provides personalized customization services for special working conditions, helping global customers solve the insulation reliability problem of submersible motors in extreme underwater environments.
