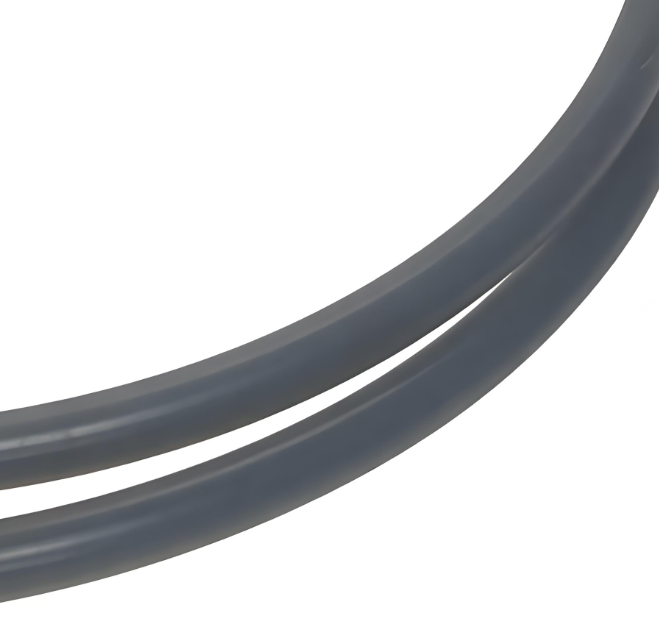

Understanding the HL/XLPE/PA Construction
The HL/XLPE/PA submersible cable employs a three-layer insulation system that differs fundamentally from standard PE2/PA or BOPP constructions. The designation “HL” refers to a semiconducting layer applied directly over the stranded copper conductor. This layer performs a critical function that becomes essential at operating voltages of 3 kV and above: it equalizes the electric field distribution at the conductor surface. Without this layer, localized electrical stress concentrations at the strand surfaces would initiate partial discharge and premature insulation failure.
The XLPE (cross-linked polyethylene) insulation layer provides the primary dielectric barrier. Cross-linking transforms the polyethylene from a thermoplastic into a thermoset material, creating a three-dimensional molecular network with significantly enhanced thermal stability and resistance to electrical stress. The cable operates reliably at conductor temperatures up to 90°C, making it suitable for continuous duty in demanding submersible applications.
The PA (polyamide/nylon) outer sheath delivers mechanical protection that is particularly important for the large-diameter conductors used in high-power motors. The polyamide sheath resists abrasion during winding and service, contributes to the cable‘s smooth surface finish for ease of slot filling, and adds a secondary barrier against water penetration. The sheath also provides resistance to chemicals and maintains flexibility at low temperatures.
Malaysian Companies Utilizing Submersible Pump Repair Services
Malaysia has a well-established infrastructure of motor and pump repair companies that serve industries requiring reliable submersible pump operation. These companies represent the customer base for high-quality submersible winding wire such as the HL/XLPE/PA construction.
Wehaya Sdn Bhd, based in Miri, Sarawak, is a Bumiputera engineering company incorporated in 1990 that has been a trusted partner to Malaysia’s oil and gas industry for over 30 years. The company is licensed by PETRONAS and holds the distinction of being Malaysia‘s first IECEx-accredited Ex Workshop, certified for repair and overhaul of explosion-proof equipment. For more than 20 years, Wehaya’s workshop has been involved in submersible motor-pump repair, service, and testing, serving major oil and gas companies including PETRONAS, SHELL Malaysia, MURPHY, JX NIPPON Oil & Gas Exploration, and Exxon Mobile. The company‘s service capabilities cover the complete range of rotating equipment maintenance, including the rewinding of submersible motors that require high-performance insulation systems.
Syarikat Kejuruteraan Letrik Yun Loong Sdn Bhd, based in Kajang, Selangor, has been a trusted name in motor rewinding, repair, and overhaul services for over 37 years. The company specializes in AC/DC motors, pumps, transformers, and alternators, serving clients throughout Selangor, Kuala Lumpur, Penang, and Johor Bahru. Yun Loong provides professional submersible pump service including repair, overhaul, inspection, and maintenance for industrial applications, with expertise covering high-voltage and megawatt-capacity motors. The company holds AEMT and EASA membership, reflecting its commitment to international standards in motor repair.
KLVA (M) Sdn Bhd has operated in Malaysia for over 37 years as a trusted name in motor rewinding, repair, and overhaul services. Based in Selangor, the company serves clients in Selangor and Kuala Lumpur, specializing in AC/DC motors, pumps, transformers, and alternators. The company’s submersible pump repair capabilities address the specific requirements of water-filled motors, including the rewinding of stators using appropriate insulation materials.
Emgrand Energy Sdn Bhd (EMG), based in Johor Bahru, specializes in MRO (Maintenance, Repair, Refurbishment, Overhaul) services for essential industries including petrochemical, oil and gas, power, water treatment, and palm oil. The company‘s capabilities cover AC LV (415V) and MV (3.3kV and 6.6kV) motors, submersible pumps, centrifugal pumps, and multistage pumps. EMG provides rewinding services for medium-voltage motors, which require the electric field control that the HL semiconducting layer provides.
Everpine Engineering Sdn Bhd is a specialized electrical engineering firm with decades of experience in servicing, repairing, and overhauling electric motors, reducers, and pumps. The company offers high-quality solutions for low and high-tension motors, DC motors, alternators, and submersible pumps, with expertise extending to operations, maintenance, and annual maintenance contracts across Malaysia.
Suitable Pumps for Repair with HL/XLPE/PA Cable
The HL/XLPE/PA submersible cable is designed for high-power, medium-voltage submersible motors where electric field control at the conductor surface is essential for reliable dielectric performance. Repair applications for this cable type include:
Medium-voltage water supply pumps operating at 3.3 kV and 6.6 kV represent a primary application. Emgrand Energy‘s service capabilities specifically list MV motors at 3.3kV and 6.6kV among the equipment types they service. Municipal water supply systems in Malaysia increasingly utilize medium-voltage submersible motors for large-scale water distribution, where the HL semiconducting layer prevents partial discharge that would otherwise degrade insulation life.
Oil and gas submersible pumps used in upstream and downstream operations require insulation systems that can withstand the combined stresses of water immersion, hydrocarbon exposure, and electrical stress. Wehaya Sdn Bhd’s 20-plus years of experience in submersible motor-pump repair for major oil and gas clients including PETRONAS, SHELL, and Exxon Mobile reflects the demand for high-reliability insulation in these critical applications.
Mining and industrial dewatering pumps operating at medium voltage benefit from the combined properties of the HL/XLPE/PA construction. The semiconducting layer equalizes the electric field, the XLPE insulation provides high dielectric strength and thermal stability, and the PA sheath delivers mechanical protection. Yun Loong‘s expertise in high-voltage and megawatt-capacity motor servicing aligns with the requirements of these demanding applications.
Rewindable submersible motors in water treatment and power generation facilities represent an important repair segment. KLVA and Everpine Engineering both provide submersible pump repair services for industrial and commercial clients, including water treatment plants and power generation facilities. When these motors require rewinding, the appropriate insulation material must be selected based on the original motor specification and operating voltage.
Technical Considerations for Repair
When repairing medium-voltage submersible motors, the selection of winding wire is critical. The HL semiconducting layer must be intact and properly applied to maintain electric field equalization. Any damage to this layer during the repair process must be addressed to preserve the motor’s dielectric reliability. The XLPE insulation provides the primary dielectric barrier and must be applied concentrically around the conductor with eccentricity controlled to ensure uniform dielectric strength. The PA sheath protects the underlying insulation and facilitates the winding process.
Zhengzhou Tasuu Winding Wire Industry Co., Ltd. manufactures HL/XLPE/PA submersible cable to international standards, supplying the global repair and manufacturing market with high-performance insulation solutions for water-filled electric motors. For Malaysian pump service providers and motor repair workshops, sourcing from established Chinese manufacturers provides access to advanced insulation technology at competitive pricing.
