Stainless steel coupling for deep well pumps

View more products about other parts+

Understanding the Role of Couplings in Deep Well Pump Systems

A coupling is fundamentally a mechanical device that connects two shafts—specifically, the motor shaft and the pump shaft—to transmit rotational power from the motor to the pump . In the context of deep well submersible pumps, the coupling must reliably transfer torque while withstanding the challenging conditions characteristic of underwater operation, including continuous water exposure, variable temperature conditions, and significant static and dynamic loads.

The coupling serves several vital functions in a deep well pump system:

• Power Transmission: Transfers rotational energy from the motor to the pump impellers

• Alignment Facilitation: Helps maintain proper shaft alignment to reduce wear and vibration

• Torque Handling: Transmits torque from the motor through the shaft to the pump’s hydraulic end

In the field of pump technology, couplings are commonly divided into two main categories: rigid couplings and flexible couplings . Rigid couplings, which include stainless steel options like those featuring a 14-tooth to 12-tooth configuration, provide a fixed, solid connection between shafts. These are typically used when precise alignment is maintained and no angular or parallel misalignment is expected . The rigid design offers high torque capacity with zero backlash, making it particularly suitable for submersible pump applications where precise power transmission is required.

Dimensional Specifications and Configuration Options

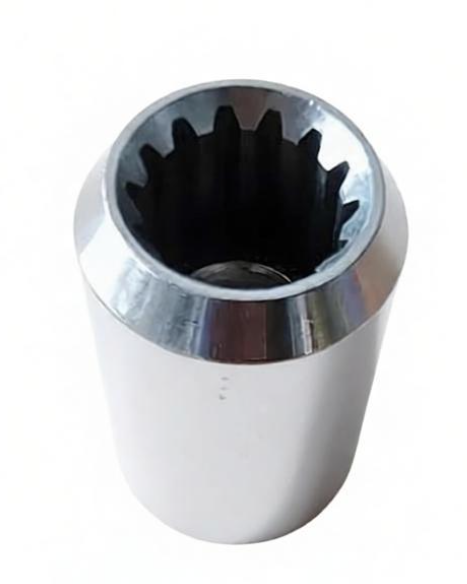

When selecting stainless steel couplings for deep well pumps, dimensional accuracy is paramount. Our product range includes couplings with a 14-tooth to 12-tooth configuration, which refers to the spline or gear arrangement that connects to the motor and pump shafts. This specific tooth count transition is commonly used in submersible motor applications and requires precise matching to the corresponding shaft configurations.

Shaft Bore Diameter Options

The internal bore diameter must match the shaft diameter of both the motor and the pump. Standard options available include 19mm and 25mm bores, with additional custom sizes available upon request. These dimensions correspond to common shaft sizes used in 4-inch and 6-inch submersible pump motors . When ordering, it is essential to verify the exact shaft diameter of your motor and pump—the most common error in coupling selection is ordering the wrong bore size.

For example, the 19mm bore configuration is typically paired with lower bearing bushings, while the 25mm bore is commonly used with upper bearing bushings that feature integrated positioning “ears” for secure mounting. The lower bearing bushing for 25mm bores is also available separately, allowing for maintenance and replacement without replacing the entire coupling assembly.

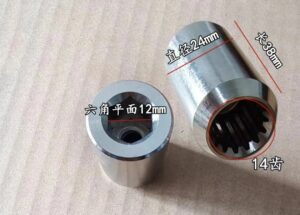

Overall Dimensions and Material

The coupling’s external dimensions are designed to accommodate standard pump and motor housings while providing adequate material thickness for strength and durability. Our couplings are manufactured from stainless steel, offering excellent corrosion resistance that is essential for long-term submersion in water with varying mineral content and chemical composition . The stainless steel construction also provides high torsional strength and resistance to galling, ensuring reliable operation even under repeated start-stop cycles.

Beyond Couplings: Comprehensive Component Supply

While stainless steel couplings represent a significant portion of deep well pump hardware, proper system operation depends on additional components that work in conjunction with the coupling to ensure reliable power transmission and pump operation.

Ceramic Shaft Bushings

Ceramic shaft bushings provide excellent wear resistance and corrosion protection for the shaft where it passes through the pump housing. Our ceramic bushings are available in standard dimensions including 12mm inner diameter with 18mm outer diameter and 14mm height, as well as 12mm inner diameter with 19mm outer diameter and 14mm height, and 15mm inner diameter with 25mm outer diameter and 14mm height. The ceramic material offers exceptional hardness and low friction, reducing wear on the shaft and extending bearing life.

Plastic Adjustment Spacers

Precise shaft positioning is essential for proper pump operation. Plastic adjustment spacers, available in 5mm and 10mm heights, allow installers to fine-tune the axial positioning of the motor relative to the pump. These spacers are typically used to set the correct clearance between the motor shaft and pump shaft, ensuring proper engagement of the coupling splines and preventing premature wear.

Quality Assurance and Sourcing Considerations

As a supplier serving international markets, we maintain strict quality control procedures to ensure that every coupling and component meets our customers’ specifications. All finished products undergo visual and dimensional inspection, with particular attention paid to critical dimensions including bore diameter, tooth configuration, and overall length.

Sourcing high-quality stainless steel couplings is essential for protecting your reputation as a manufacturer, distributor, or service provider. Using substandard components can lead to premature failure, costly downtime, and damage to associated equipment. Our couplings are manufactured from grade 316 stainless steel where specified, providing excellent resistance to pitting and crevice corrosion in aggressive water conditions.
