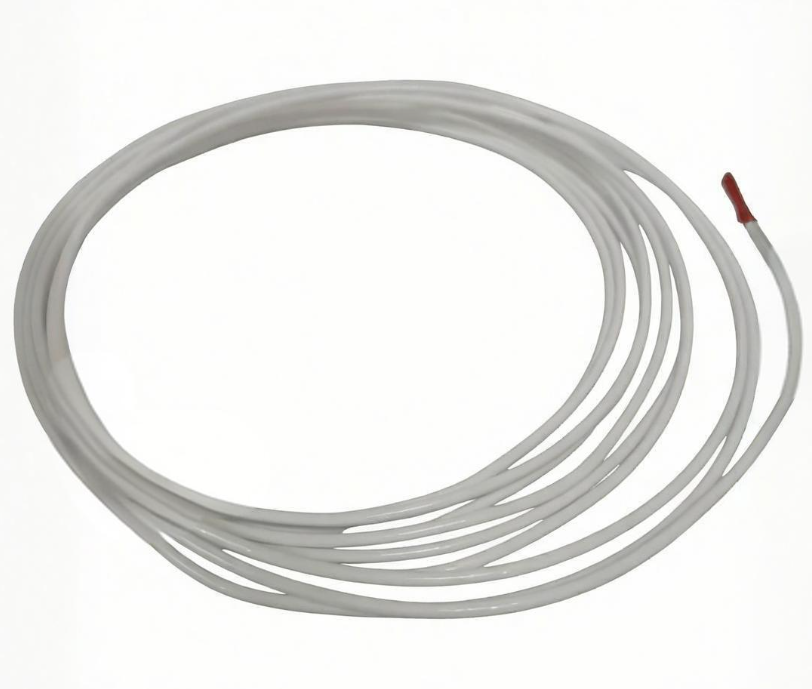

PP Submersible Copper Winding Wire

View more products about submersible pump winding wire+

Core Construction and Material Advantages

Every structural layer of this winding wire is optimized to address the extreme operating conditions of submersible equipment:

1. High-Purity Annealed Copper ConductorManufactured with 99.97%+ oxygen-free bare copper, the conductor adopts multi-strand compacted twisted structure that meets IEC 60228 Class 5 standards. It features extremely low resistivity, excellent flexibility and stable current-carrying capacity, effectively avoiding overheating and power loss caused by inferior conductor materials. The smooth, burr-free surface eliminates hidden risks of insulation piercing during the motor winding and embedding process, ensuring long-term electrical reliability.
2. Heat-Resistant Modified PP Insulation LayerThe specially formulated modified polypropylene insulation undergoes targeted heat-resistant enhancement treatment, achieving a continuous long-term operating temperature of 90°C. It can withstand a peak temperature of 105°C during short-term overload such as motor startup, without insulation softening, decomposition or performance degradation. The insulation layer maintains stable dielectric strength even under continuous high-temperature operation, fully meeting the ampacity requirements specified in GB/T 12706 standard for corresponding conductor cross-sections.
3. Integrated Mechanical and Waterproof DesignThe modified PP insulation layer delivers a tensile strength of over 20MPa, far exceeding the mechanical performance of ordinary PP materials. It effectively resists friction, vibration and micro-displacement generated during the continuous operation of high-power submersible pumps, preventing insulation wear caused by contact with fixed brackets inside the motor. The material also features ultra-low water absorption, which can maintain complete insulation performance after long-term immersion in high-pressure water up to several MPa, avoiding insulation breakdown and motor burnout caused by water ingress.

Key Performance for Real-World Application Scenarios

This PP submersible copper winding wire shows targeted advantages across different operating environments:

• Deep Well Water Supply Scenarios: It adapts to the high-pressure environment hundreds of meters below the water surface, maintaining stable insulation resistance even after years of continuous operation. It effectively resists the erosion of trace mineral components in groundwater, ensuring the submersible pump can operate reliably for more than 3000 hours without failure.
• High-Power Submersible Pump Scenarios: The excellent heat dissipation and current-carrying performance of the PP insulation layer can handle the continuous heat generation of high-power motors, avoiding insulation aging and failure caused by long-term overheating. It is widely used in large-scale water-filled and oil-filled submersible electric pump systems.
• Agricultural Irrigation Scenarios: The robust mechanical strength and vibration resistance of the PP layer adapt to frequent start-stop operations and complex on-site operating conditions, reducing motor failure rates during peak irrigation seasons and cutting post-maintenance costs for large farmland irrigation projects.
• Cost-Effective Mass Procurement: Compared with high-spec composite insulation winding wires, this PP insulated solution balances performance and cost perfectly. It is an ideal choice for bulk procurement of standard submersible pump supporting materials, helping procurement teams optimize the total lifecycle cost of equipment without compromising core reliability.

Procurement and Quality Assurance

To support global customers with stable and risk-free procurement, we provide full-process quality control and service guarantees:

1. Full Batch Traceability: Every production batch is accompanied by complete test reports, including conductor resistance test, insulation tensile strength inspection, 24-hour high-pressure water immersion withstand voltage test and thermal stability verification, ensuring all products meet declared technical specifications.
2. Customization Support: We can provide customized solutions for different conductor diameters (ranging from ∅0.47mm to ∅3.6mm), multi-strand twisted structures and special insulation thickness according to the specific parameters of customers’ submersible motors, eliminating the risk of performance mismatch caused by general model selection.
3. Certified Quality System: All products strictly comply with JB/T 4014 industry technical standards, and are certified by ISO 9001, RoHS and other international systems, fully meeting the quality requirements of global industrial and civil engineering projects.
4. Stable Supply Capacity: With an annual production capacity of over 2500 tons, we can deliver bulk orders within 10-15 working days, and provide emergency small-batch supply for equipment maintenance scenarios to minimize downtime loss caused by submersible motor failure.
