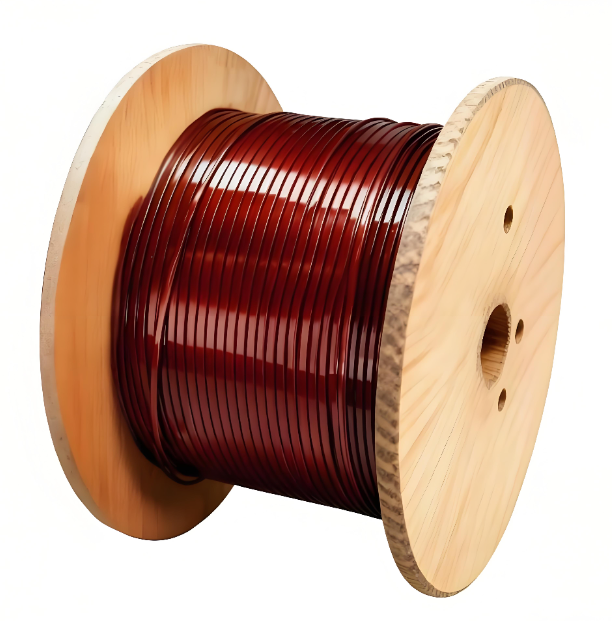

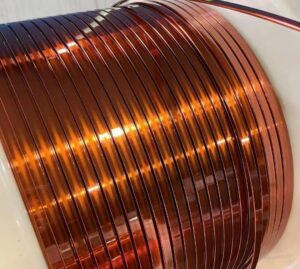

30%Copper Enameled CCA wire for transformers and motors

View more products about flat enameled cca wire+

Material Composition and Properties

Enameled CCA wire with 30% copper content consists of an aluminum core metallurgically bonded to a copper cladding layer. The copper constitutes 30% of the total wire weight, providing a robust conductive surface while the aluminum core delivers significant weight savings. This composition yields a conductivity of approximately 65% IACS (International Annealed Copper Standard), which represents an optimal balance for many transformer and motor applications.

The density of 30% copper CCA wire ranges from 3.30 to 3.63 g/cm³, substantially lower than pure copper’s 8.96 g/cm³. This density reduction translates directly into material weight savings: one tonne of CCA wire can deliver 2.5 to 2.7 times more length than pure copper wire of the same diameter. For manufacturers in cost-sensitive markets, this means more coils per kilogram of raw material and reduced transportation costs.

Enameled Insulation Systems

The enameled coating on CCA wire provides essential electrical insulation while protecting the conductor from environmental factors. Available thermal classes range from 130°C to 220°C, with common grades including Class 130 (B), Class 155 (F), Class 180 (H), and Class 200/220. The enamel types include polyester (PEW), polyurethane (UEW), polyester-imide (EIW), and polyamide-imide (AIW), each offering specific performance characteristics for different operating conditions.

Applications in Transformers and Motors

Transformer Applications

30% copper enameled CCA wire finds extensive application in transformer manufacturing across multiple categories. In high-frequency transformers, the material’s reduced skin effect at higher frequencies makes it particularly suitable for switch-mode power supplies, chargers, and electronic devices. The lighter weight also contributes to more portable transformer designs without compromising electrical performance.

For standard power frequency transformers used in industrial and commercial applications, 30% copper CCA wire provides reliable performance at a significantly reduced material cost. The wire’s good solderability—facilitated by the copper cladding—enables standard connection processes without requiring specialized soldering techniques like those needed for pure aluminum wire. Transformers utilizing CCA wire can maintain adequate current-carrying capacity while achieving substantial cost savings.

Motor Applications

The motor industry represents a significant market for 30% copper enameled CCA wire. Applications include household electrical motors (such as those in washing machines, vacuum cleaners, and kitchen appliances), fan motors, various micro-motors, pump motors, and automotive electrical components. The material’s lightweight nature reduces rotor inertia, potentially improving motor efficiency and response characteristics.

The enameled insulation systems available for CCA wire meet the thermal and mechanical demands of diverse motor applications, with thermal classes up to 220°C for demanding environments. The material’s high mechanical strength and resistance to softening make it suitable for high-speed motor windings.

Price Advantage Analysis

Raw Material Cost Comparison

The most compelling advantage of 30% copper enameled CCA wire lies in its significant cost reduction relative to pure copper wire. Multiple industry sources confirm substantial material cost savings:

• 30% to 50% material cost reduction compared to pure copper wire

• Approximately half the weight of pure copper wire for the same resistance, meaning roughly 2.5 times the length per unit weight

• Cost savings of at least 30% compared to pure copper wire for equivalent applications

These cost advantages derive from the lower price of aluminum compared to copper, as aluminum constitutes approximately 70% of the wire’s weight but is substantially less expensive per unit weight. The copper cladding, while representing only 30% of the weight, provides the surface conductivity necessary for good soldering and electrical contact.

Resource Efficiency

Beyond direct cost savings, 30% copper enameled CCA wire offers exceptional resource efficiency. The length-to-weight ratio advantage means that manufacturers can produce significantly more winding length from the same weight of material compared to pure copper. This translates directly to lower raw material procurement costs, reduced inventory expenses, and improved manufacturing economics.

The density comparison is particularly striking: at 3.30 g/cm³, 30% CCA wire is approximately 2.7 times lighter than pure copper wire at 8.89 g/cm³. This means that for a given weight, manufacturers obtain 2.7 times more wire length—a critical advantage in markets where transportation costs and import duties significantly impact final product pricing.

Manufacturing Cost Implications

The use of enameled CCA wire influences manufacturing costs beyond raw material pricing. The lighter weight facilitates easier handling during winding operations, potentially reducing labor time and equipment wear. The material’s excellent solderability—superior to pure aluminum—enables standard manufacturing processes without requiring specialized soldering techniques. The consistent quality achievable through modern manufacturing processes reduces rejection rates and rework costs, further improving overall cost efficiency.

Market Prospects in Lebanon

Economic Context and Demand Drivers

Lebanon faces significant economic challenges, including currency devaluation, high inflation, and constrained import capacity. These conditions make cost-effective material solutions particularly attractive for the country’s manufacturing sector. The Lebanese electrical equipment market, while relatively small, serves both domestic needs and potential export opportunities to neighboring markets.

The reconstruction efforts following periods of conflict and the ongoing need for infrastructure development create demand for transformers and motors across various sectors, including power distribution, industrial facilities, and residential construction. The price sensitivity of the Lebanese market makes 30% copper enameled CCA wire an attractive alternative to pure copper wire, offering substantial cost savings while maintaining adequate performance for many applications.

Specific Application Opportunities

In Lebanon, the following applications present particular opportunities for 30% copper enameled CCA wire:

1. Power Distribution Transformers: With ongoing infrastructure needs, cost-effective transformer materials can help stretch limited budgets for grid improvements.

2. Industrial Motors: The manufacturing and industrial sectors require motors for various applications where CCA wire offers a cost-effective solution without compromising reliability.

3. Household Appliance Motors: The domestic appliance market benefits from lower-cost motor production, making CCA wire an attractive option for local assembly operations.

4. Generator Sets: With frequent power outages, generator manufacturing and repair represent a significant market where cost-effective winding wire is essential.

Market Prospects in Syria

Economic Context and Demand Drivers

Syria’s protracted conflict has devastated its industrial infrastructure, creating both challenges and opportunities. The reconstruction phase, while still in early stages, will require massive investment in electrical infrastructure, including transformers, motors, and related equipment. The economic constraints facing the country make cost-effective material solutions particularly valuable.

International sanctions and trade restrictions have complicated Syria’s access to global markets, creating a premium for materials that offer cost advantages while meeting technical specifications. The country’s need to rebuild its power grid, industrial facilities, and residential infrastructure presents significant demand for electrical equipment, with transformers and motors being fundamental components.

Specific Application Opportunities

In Syria, the following applications present particular opportunities for 30% copper enameled CCA wire:

1. Reconstruction Infrastructure: Power distribution networks, substations, and industrial facilities require transformers where cost-effective materials can help maximize the impact of limited reconstruction budgets.

2. Water Pump Motors: Agriculture and water supply infrastructure depend on pumps and motors, creating demand for reliable yet affordable winding wire.

3. Small-Scale Manufacturing: As industrial capacity slowly rebuilds, local manufacturers of electrical equipment may turn to cost-effective materials to remain competitive.

4. Generator Sets and Repair: The intermittent power supply creates demand for generators and repair services, making CCA wire valuable for maintenance and production.

Challenges and Considerations

Technical Limitations

Manufacturers considering 30% copper enameled CCA wire should understand certain technical limitations. The conductivity, at approximately 65% of pure copper, means that cross-sectional areas may need adjustment to achieve the same current-carrying capacity. However, the lighter weight and cost advantages often compensate for this design consideration. For many transformer and motor applications, the performance difference is acceptable when balanced against cost savings.

Market Access and Supply Chain

For both Lebanon and Syria, access to reliable supply chains for enameled CCA wire is essential. China is a major producer of CCA wire, with many manufacturers offering products meeting international standards. Establishing reliable import channels and ensuring quality consistency are important factors for successful adoption.
