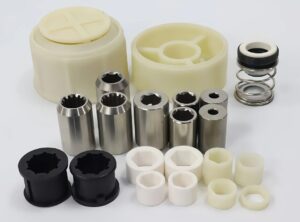

Deep well pump motor parts

View more products about other parts+

Understanding the Critical Role of Couplings in Deep Well Pumps

A coupling is fundamentally a mechanical device that connects two shafts together—specifically, the motor shaft and the pump shaft—to transmit rotational power from the motor to the pump . In deep well pump systems, the coupling must reliably transfer torque while accommodating the demanding operating conditions characteristic of submersible and vertical turbine applications.

The coupling serves several vital functions:

• Power Transmission: Transfers rotational energy from the motor to the pump impellers

• Alignment Facilitation: Helps maintain proper shaft alignment to reduce wear and vibration

• Torque Handling: Transmits torque from the motor through the shaft to the pump’s hydraulic end

When couplings fail or wear out—typically due to constant use, vibration, misalignment, or corrosion—operators may notice warning signs including unusual noises, reduced water flow, decreased pump efficiency, or complete system failure . For this reason, sourcing high-quality couplings and motor parts is not just a matter of convenience but a critical factor in preventing costly downtime and repairs.

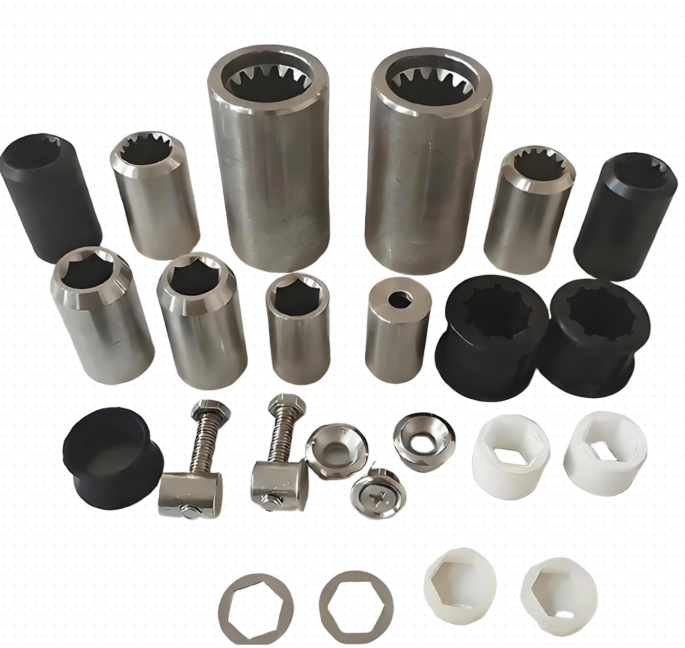

Types of Deep Well Pump Couplings We Supply

Based on our extensive experience serving the global pump industry, we offer a comprehensive selection of coupling types designed to meet diverse application needs .

Rigid Couplings

Rigid couplings provide a fixed, solid connection between the motor shaft and pump shaft. These couplings are designed for applications where precise alignment is maintained and no angular or parallel misalignment is expected . Key characteristics include:

• High torque capacity with zero backlash

• Economical solution for standard applications

• One-piece construction that wraps around the shaft, providing high torsional holding power without shaft damage or fretting typically associated with set screw designs

Our rigid couplings are manufactured to accommodate a wide range of shaft diameters, from 3/4 inch to 3 inches, with options for both straight and step bore configurations . We offer couplings with NEMA spline configurations and keyed shaft options to ensure compatibility with standard motor and pump shafts.

Flexible Couplings

For applications where some degree of misalignment is unavoidable or where vibration damping is beneficial, flexible couplings offer superior performance. These couplings feature an elastomeric element—often in a plum coupling design—that accommodates minor misalignment while absorbing shock loads and vibration .

The flexible design helps protect both the motor bearings and pump bearings from excessive wear caused by unavoidable misalignment in deep well installations where shafts may extend considerable distances.

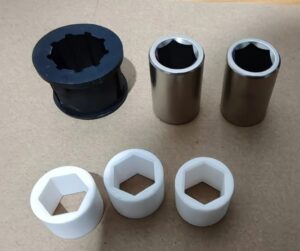

Submersible Motor Couplings

Specifically designed for submersible deep well pump applications, our submersible motor couplings incorporate features essential for underwater operation :

• Corrosion-resistant materials: Standard offerings include 316 Grade Stainless Steel (UNS S31600) for excellent corrosion resistance, with Monel and other exotic materials available upon request

• Sealed design considerations: Protection against water ingress and contamination

• Spline compatibility: Options to suit NEMA 6-inch and 8-inch motor configurations

These couplings are engineered to withstand the challenging environment of submersible operation, including continuous water exposure, variable temperature conditions, and significant static and dynamic loads.

Quality Materials and Precision Manufacturing

The durability and performance of deep well pump couplings depend heavily on material selection and manufacturing precision. We source materials that meet international standards and are suitable for the most demanding applications.

Material Options

• Stainless Steel (316 Grade): Our standard offering provides excellent corrosion resistance, making it ideal for applications where the pump operates in water with varying mineral content and chemical composition

• Cast Iron and Ductile Iron: Suitable for less corrosive environments and cost-sensitive applications

• Stainless Steel: Available for specialized requirements, particularly in food-grade or highly corrosive applications

• Bronze and Brass: Offering excellent corrosion resistance in certain water conditions

Our manufacturing partners maintain ISO9001 quality management system certification, ensuring that every component undergoes rigorous inspection and testing before shipment . Raw material inspection protocols include random sampling checks, with each production batch subjected to dimensional verification and performance testing.

Beyond Couplings: Comprehensive Motor Parts Supply

While couplings represent a significant portion of our business, we also supply a complete range of deep well pump motor parts to serve as your one-stop sourcing partner:

Motor Shaft Assemblies

We offer complete motor shaft and coupling assemblies for 4-inch and 6-inch submersible pumps, ensuring proper fit and reliable performance . For many applications, the shaft and coupling are supplied as an integrated assembly, simplifying installation and reducing the risk of compatibility issues.

Bearings and Seals

Proper bearing selection is essential for maintaining shaft alignment and minimizing wear . We supply radial and thrust bearings suitable for submersible motor applications, along with mechanical seals and sealing rings designed to prevent liquid ingress into the motor housing .

Connection Keys and Grooves

Our product range includes precision-machined connection keys in a rectangular parallelepiped structure, designed for gap-fit coordination between motor shafts and pump shafts . This configuration allows for easier assembly while maintaining the necessary concentricity for smooth operation .

Custom-Engineered Components

With in-house engineering capabilities and flexible manufacturing arrangements, we offer OEM and ODM services for custom components . We can work from your drawings, specifications, or samples to produce parts that meet your exact requirements.

Why Choose Us as Your Sourcing Partner

Extensive Export Experience

With over 15 years of export experience to international markets, we understand the documentation, packaging, and logistics requirements necessary for smooth international trade . Our annual export volume exceeds $19 million, a testament to our reliability and the trust our clients place in our products .

Commitment to Quality

Our strict quality control procedures ensure that every product we ship meets your specifications. We conduct 100% visual and functional inspection on finished products, with a focus on protecting your reputation as a manufacturer or distributor .

Responsive Service

We pride ourselves on our ability to respond quickly to inquiries, provide detailed product information, and deliver competitive quotations without unnecessary delays. Our team is available to support you throughout the sourcing process, from initial inquiry to after-sales service.

Competitive Pricing

By leveraging our extensive supply network and manufacturing capabilities, we offer competitive pricing without compromising quality. Our flexible trade terms—including FOB, CIF, CFR, and EXW—provide options that suit your business model .

Application-Specific Solutions

Different deep well pump applications have unique requirements. We tailor our product offerings to match these needs:

• Municipal Water Supply: High-reliability components with extended service life

• Agricultural Irrigation: Cost-effective solutions with adequate corrosion resistance

• Industrial Applications: Heavy-duty couplings and motor parts for demanding environments

• Residential Systems: Standard configurations suitable for domestic water supply
